Desktop Robots Details

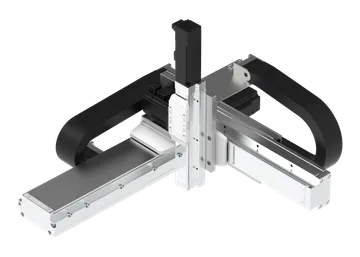

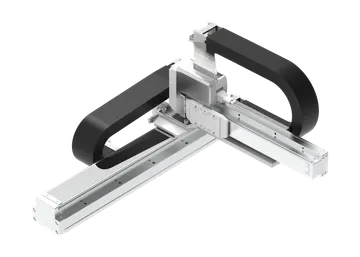

Ball screw desktop robots

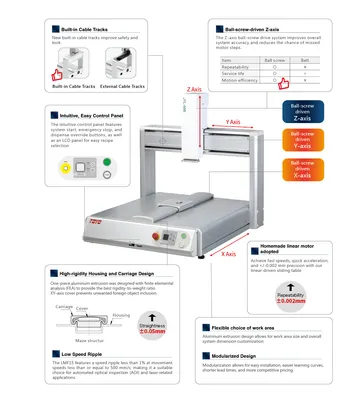

Inner Structure

Features
• All-in-one servo motor and ball screw linear mechanism modules can store up to 100 procedures and 100,000 points.
• Fully functional, intuitive user interface in 3 languages: Chinese, Japanese, English
• I/O terminals, 16IN/16OUT with a standalone control box for offline operation. Superior velocity stability, high accuracy.

New Technology
• Easy-to-use array, arc, and dispense procedures
• Each axis has +/-0.005mm repeatability
• DXF format 2D model to path conversion
• 3D arc and linear interpolation capability
• TCP/IP compliant communication, online commands

Applications
• CCD collaboration for automated optical inspection and defect detection
• Adhesive valve collaboration for dispensing and pasting
