LCF2-45

 โพสต์เมื่อ : 6 มิ.ย 2565 เวลา 8:20 น.
LCF2-45

Repeatability:±0.002(mm)

MAX. Force:1128(N)

Rated Force: 251(N)

MAX Payload : 90(kg)

Stroke (N) : 203-3019/64 pitch (mm)

Stroke (D) :429-3053/64 pitch (mm)

Maximum Speed: 1500(mm/s)

*The continuous payload is the data when the robot runs with maximum speed 1m/s and acceleration 5m/s². Different application will have different result.

* High-speed 3000mm/s customization available.

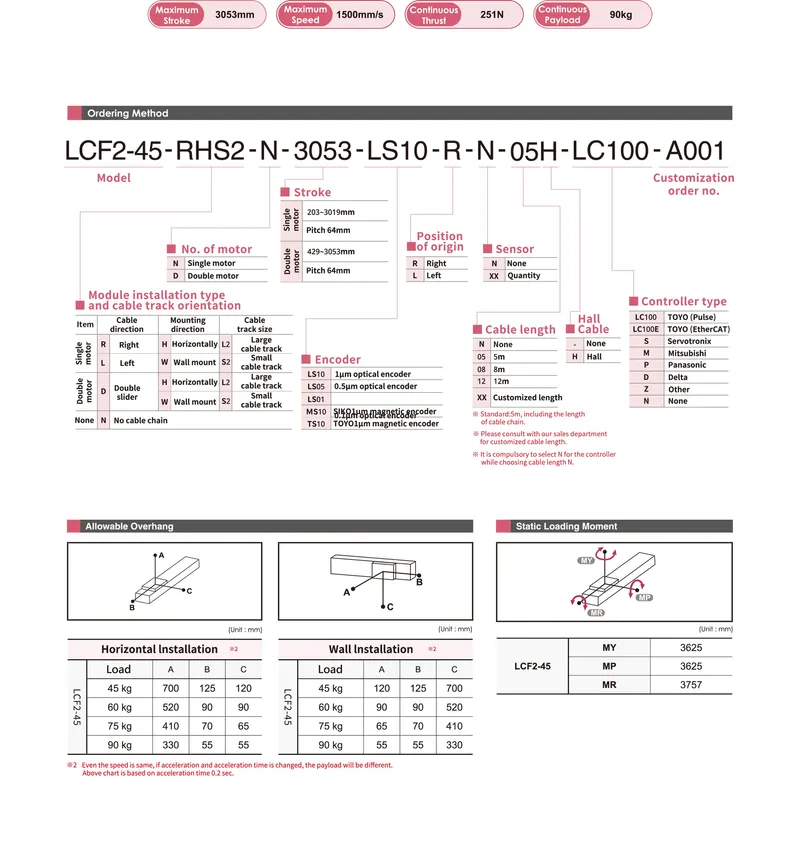

Data sheet
2D Download

LCF2-45Datasheet
