LNF2-30

โพสต์เมื่อ : 8 มิ.ย 2565 เวลา 2:17 น.

Repeatability:±0.002(mm)

MAX. Force:713(N)

Rated Force: 158(N)

MAX Payload : 54(kg)

Stroke (N) : 208-3018/64 pitch (mm)

Stroke (D) :320-3008/64 pitch (mm)

Maximum Speed:3500(mm/s)

*The continuous payload is the data when the robot runs with maximum speed 1m/s and acceleration 5m/s². Different application will have different result.

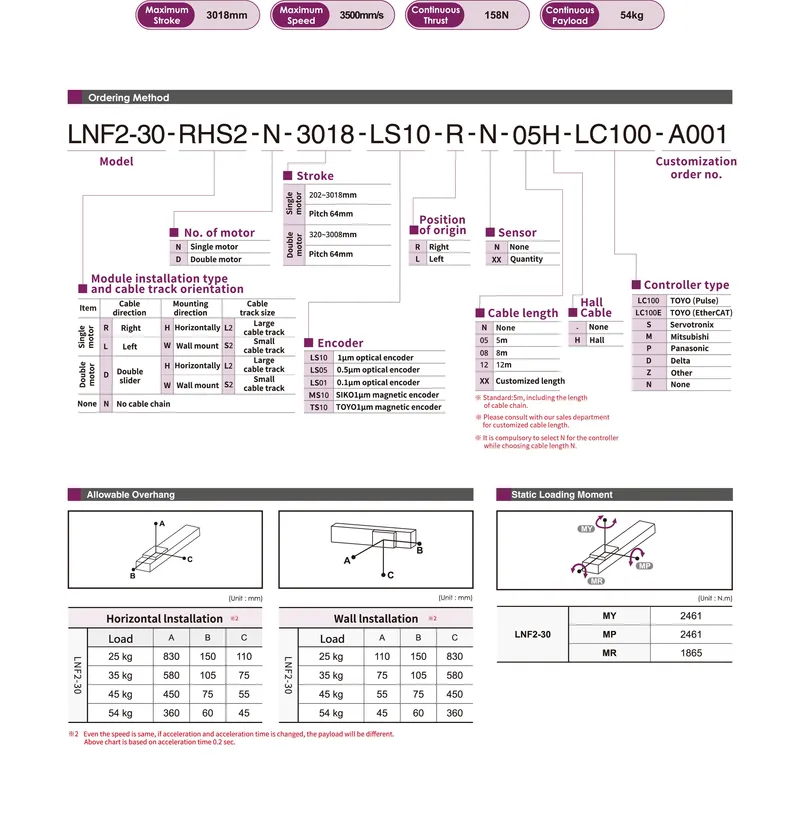

Data sheet

2D Download

LNF2-15
Repeatability:±0.002(mm)MAX. Force:266(N)Rated Force: 59(N)MAX Payload : .....
LNF2-20
Repeatability:±0.002(mm)MAX. Force:510(N)Rated Force: 113(N)MAX Payload :.....
LNF2-45
Repeatability:±0.002(mm)MAX. Force:1128(N)Rated Force: 251(N)MAX Payload .....
LNF2-75
Repeatability:±0.002(mm)MAX. Force:1532(N)Rated Force: 340(N)MAX Payload .....
