LSF7

โพสต์เมื่อ : 7 มิ.ย 2565 เวลา 3:3 น.

Repeatability:±0.002(mm)

MAX. Force:120(N)

Rated Force: 59(N)

MAX Payload : 10(kg)

Stroke: 160-1590(mm)

Maximum Speed: 3500(mm/s)

*The continuous payload is the data when the robot runs with maximum speed 1m/s and acceleration 5m/s². Different application will have different result.

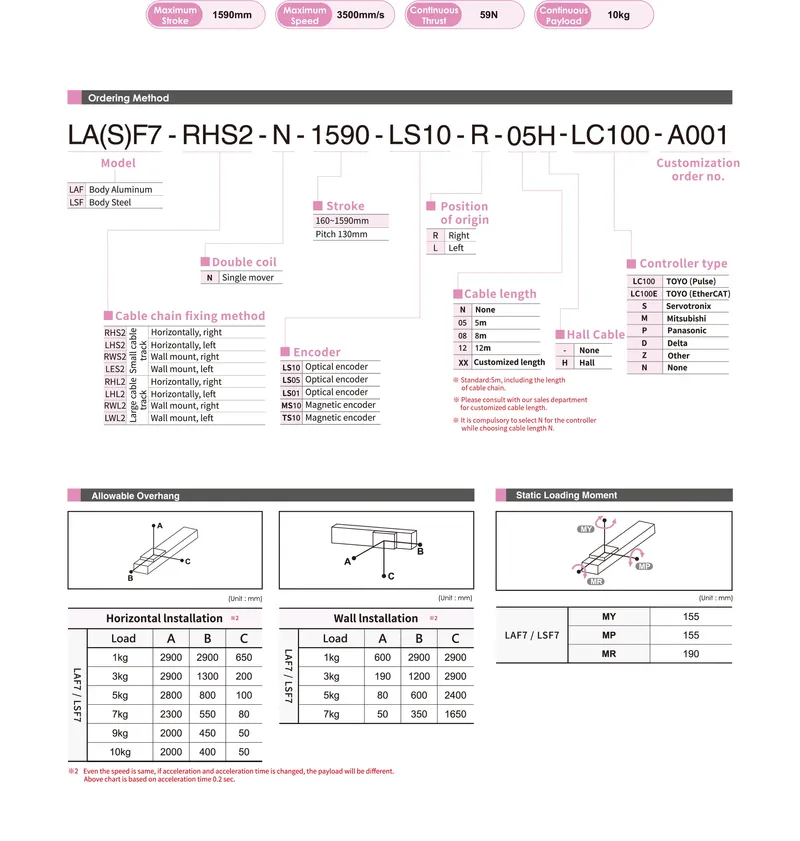

Data sheet

2D Download

LSF15
Repeatability:±0.002(mm)MAX. Force:180(N)Rated Force: 60(N)MAX Payload : .....
LSF20
Repeatability:±0.002(mm)MAX. Force:340(N)Rated Force: 115(N)MAX Payload :.....
LSF30
Repeatability:±0.002(mm)MAX. Force:450(N)Rated Force:160(N)MAX Payload : .....

LSF7
