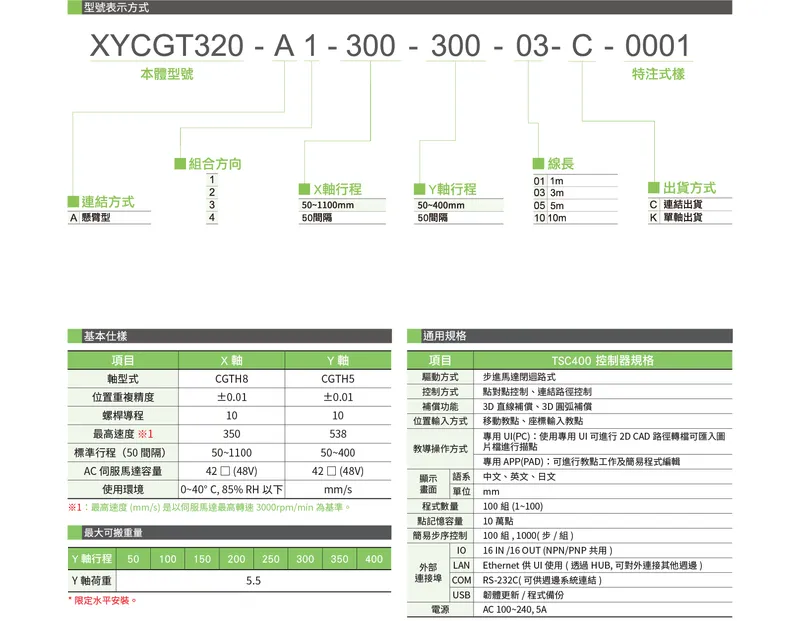

XYCGT320-A

X axis(CGTH8)

Repeatability (mm)：±0.01

Ball Screw Lead (mm)：10

Max. Speed (mm/sec)：350

Stroke (50 increments) (mm)：50-1100

AC Servo Output：42□ (48V)

Y axis(CGTH5)-

Repeatability (mm)：±0.01

Ball Screw Lead (mm)：10

Max. Speed (mm/sec)：538

Stroke (50 increments)(mm)：50-400

AC Servo Output：42□ (48V)

* Maximum speed is based on the AC servo motor's 3000RPM
