XYTH760-F

 โพสต์เมื่อ : 18 พ.ค 2565 เวลา 8:51 น.
XYTH760-F

X axis(ETH17)

Repeatability (mm)：±0.005(mm)

Ball Screw Lead (mm)：20

Max. Speed (mm/sec)：1000

Stroke (50 increments) (mm)：100-1250

AC Servo Output：400W

Z axis(ETH14)-

Repeatability (mm)：±0.005(mm)

Ball Screw Lead (mm)： 10

Max. Speed (mm/sec)：500

Stroke (50 increments)(mm)：50-500

AC Servo Output：400W+Brake

* Maximum speed is based on the AC servo motor's 3000RPM

Arm Variations

Multi axis combination explantion. We have developed 2 and 3 axes multi axis actuator through the multiple combinations of single axis actuators.

(1) Low cost compared with vertical multi joints robot.

(2) Ingenious mechanical design making Cartesian robots achieve high rigidity for reducing vibration and deformation.

(3) Multiple combination of single axis actuator.

Data sheet
2D Download

XYTH760-FDatasheet

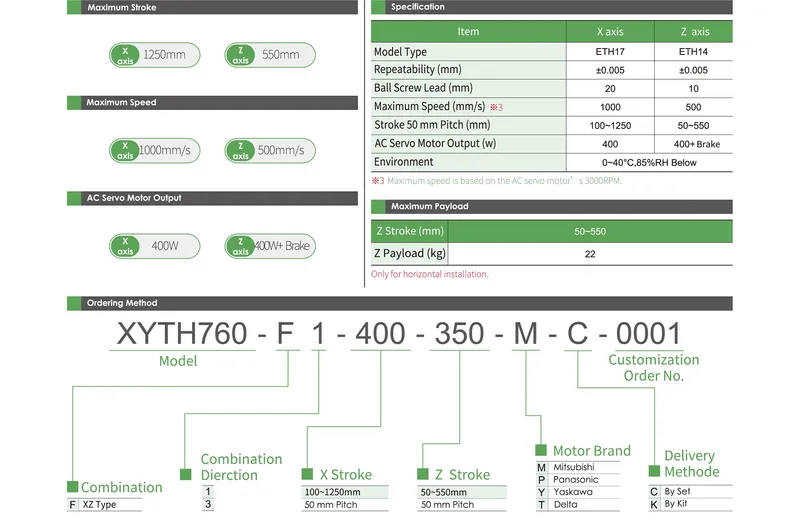

XYTH760-FDatasheet2
