BALL RUNNER BLOCK CARBON STEEL KWD-015-SLS-C0-N-1 R162319422

 โพสต์เมื่อ : 9 พ.ย 2566 เวลา 9:5 น.
R1623194221

BALL RUNNER BLOCK CARBON STEEL KWD-015-SLS-C0-N-1

R162319422

Ball runner block, SLS, size 15, steel CS, accuracy standard, preload-free, with ball chain

Data sheet
2D&3D Download

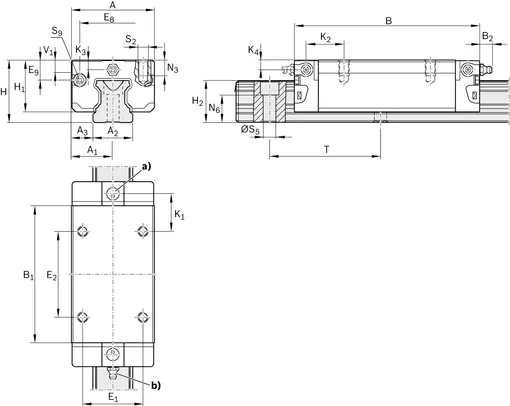

R1623194222    R1623194223
The ball runner block is highly precise and characterized by the following product features:
Size 15
Format SLS: Width = slimline, length = long, height = standard
Runner block body made of unalloyed steel CS
Preload class C0: Preload-free
Accuracy class N: Standard
With ball chain
With initial lubrication and preservation
Roller bearing grease Dynalub 510
Without attachment element, left (front reference edge)
Without attachment element, right (front reference edge)
Straight lube connection loosely attached.
Runner block body in standard version
Overall length of the runner block = 72.6 mm
Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.
  • Area of application: For restricted space in the transverse direction
  • For very high loads
  • The same high load ratings in all four main directions of loading
  • Long-term lubrication is possible over several years
  • Limitless interchangeability as all ball guide rail systems can be combined at will with all ball runner block versions within each accuracy class.
  • High torque load capacity
  • Optimized entry-zone geometry and high number of balls minimize variation in elastic deflection
  • Attachments on the ball runner block can be mounted from above
  • Integrated all-round sealing
  • Minimum quantity lubrication system with integrated reservoir for oil lubrication
  • End-face fastening thread for all attachments
  • Can be used on all SNS/SNO ball guide rails
  • Excellent dynamic characteristics
  • Different preload classes
  • Ball chain for low noise level and best travel behavior
