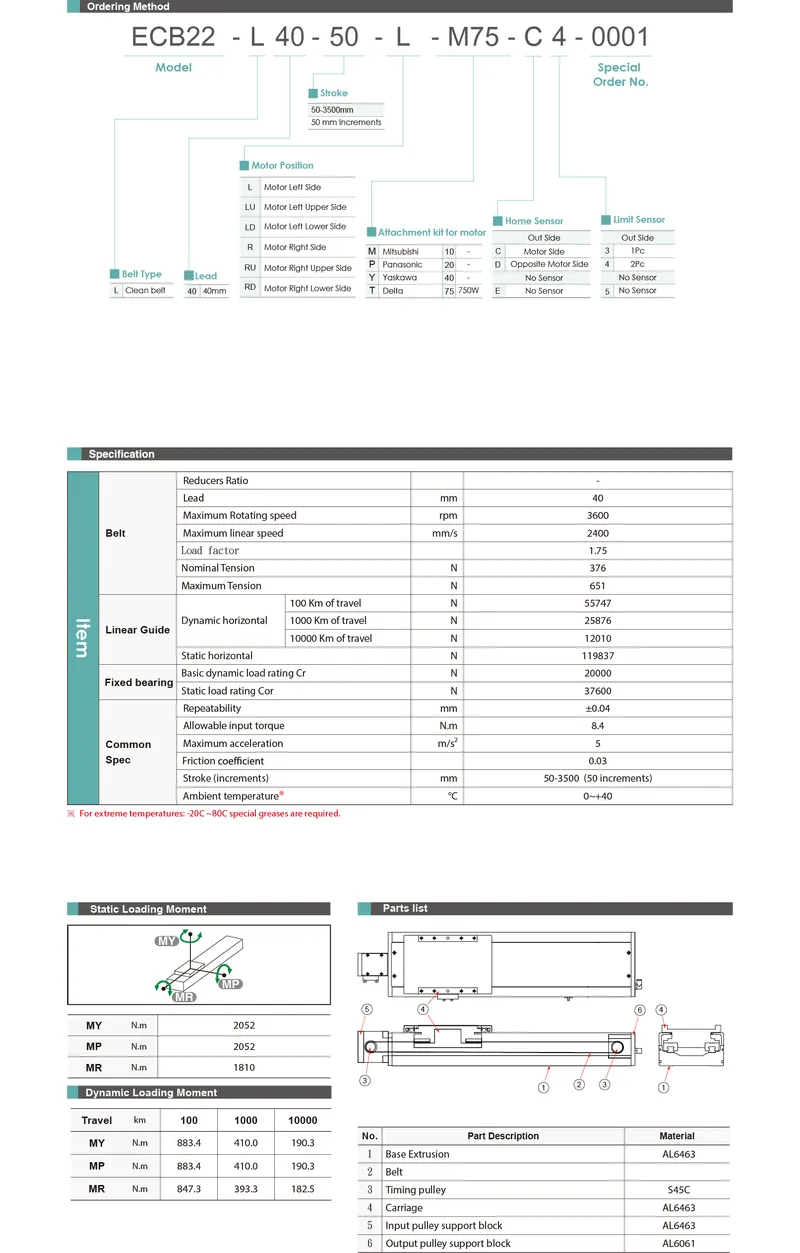

ECB22

● Belt

Lead: 40 (mm)

Maximum Rotating speed: 3600 (rpm)

Maximum linear speed: 2400 (mm/s)

Load factor : 1.75

Tis (Nominal Tension) : 376 (N)

Timax (Maximum Tension) : 651 (N)

====================================================

● Linear Guide

Dynamic horizontal / 100 Km of travel : 55747 (N)

Dynamic horizontal / 1000 Km of travel : 25876 (N)

Dynamic horizontal / 10000 Km of travel : 12010 (N)

Static horizontal : 119837 (N)

====================================================

● Fixed bearing

Basic dynamic load rating Cr : 20000 (N)

Static load rating Cr : 37600 (N)

====================================================

● Common Spec

Repeatability : ±0.04(mm)

Start torpue : 8.4 (N.cm)

Maximum acceleration 5 (m/s2)

Frication coefficient : 0.03

Stroke (increments) : 50-3500 mm (50 increments)

Ambient temperature : 0-+40 °C

===================================================

1 : For extreme temperatures : -20-80°C special grease are required.
