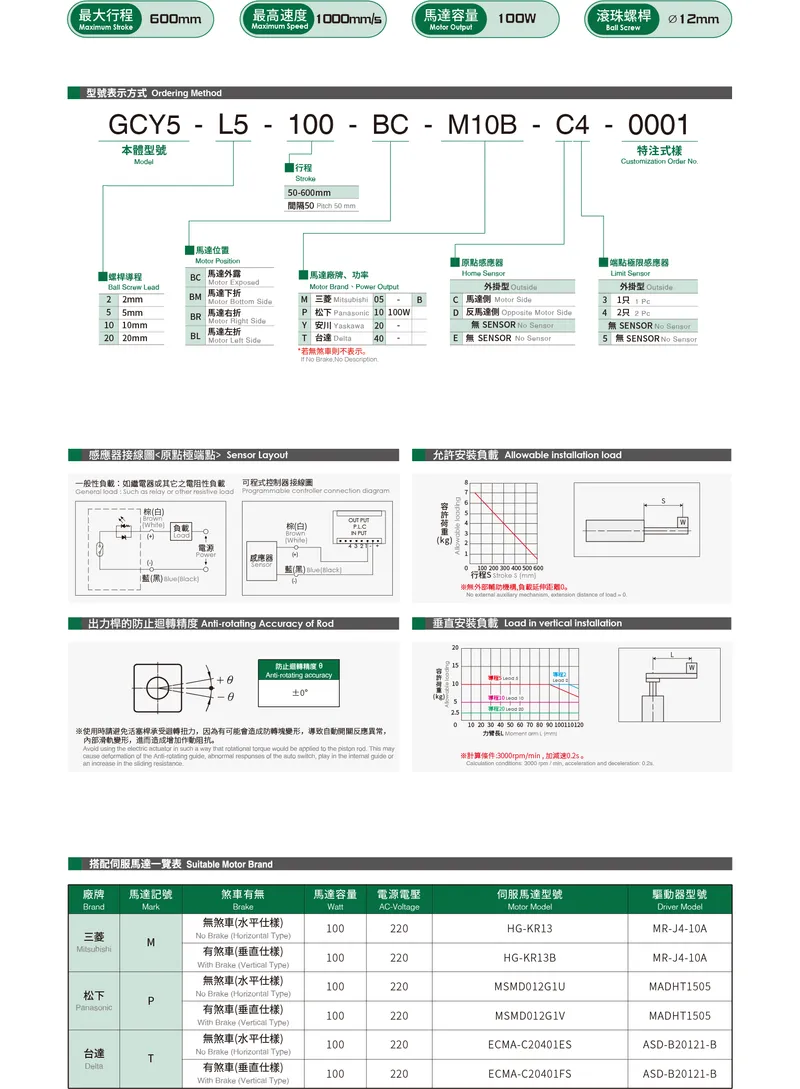

GCY5

โพสต์เมื่อ : 16 พ.ค 2565 เวลา 3:55 น.

GCY5

Repeatability：±0.01(mm)

Ball Screw Lead：2/5/10/20(mm)

Maximum Speed ：100/250/500/1000(mm/s)

Maximum Payload (Horizontal)：30/30/15/10(kg)

Maximum Payload (Vertical)：10/10/5/2.5(kg)

Rated Thrust：854/341/170/85(N)

Stroke/Pitch ：50-600 / 50 mm Pitch.

* Acceleration and deacceleration value is set 0.2 second.

* If payload is near maximum , it requires to collocate externally with auxiliary guideway for bearing radial load.
