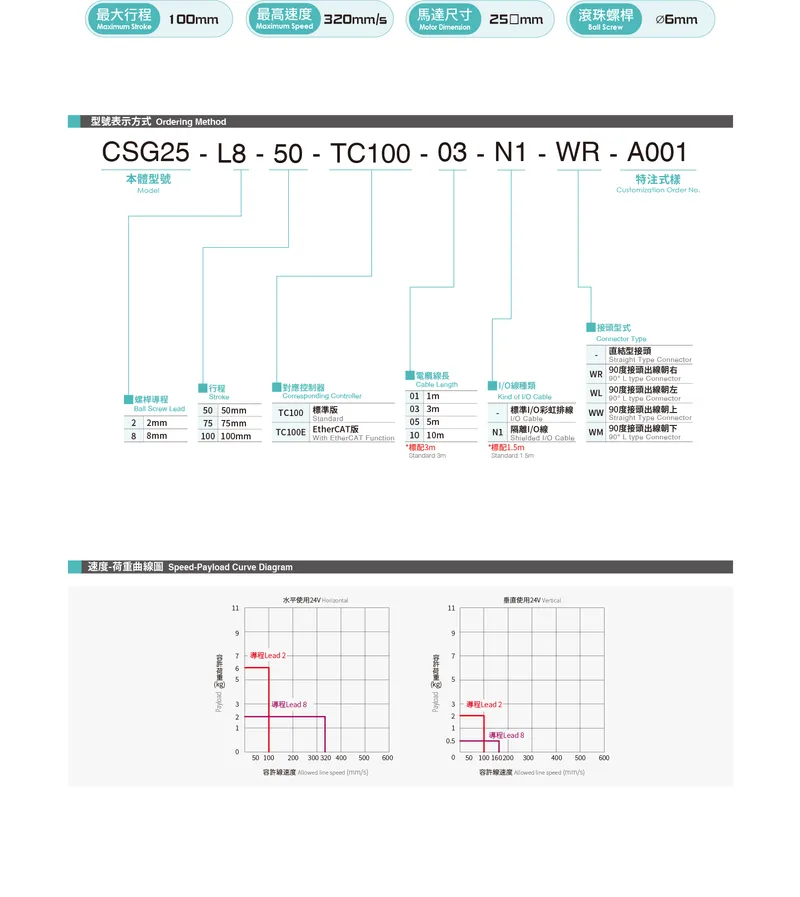

CSG25

Repeatability：±0.01(mm)

Ball Screw Lead：1/6(mm)

Maximum Speed (Horizontal)：≦50/≦300(mm/s)

Maximum Speed (Vertical)：≦50/≦300(mm/s)

Maximum Payload (Horizontal)：≦6/≦2(kg)

Maximum Payload (Vertical)：≦2/≦0.5(kg)

Rated Thrust：466/75(N)

Stroke/Pitch ：30/50(mm)

*The maximum speed shown here is when software speed setting is 100%.
