LCF2-15

 โพสต์เมื่อ : 6 มิ.ย 2565 เวลา 4:33 น.
LCF2-15

Repeatability:±0.002(mm)

MAX. Force:266(N)

Rated Force: 59(N)

MAX Payload : 20(kg)

Stroke (N) : 208-3024/64 pitch (mm)

Stroke (D) :332-3020/64 pitch (mm)

Maximum Speed: 1500(mm/s)

*The continuous payload is the data when the robot runs with maximum speed 1m/s and acceleration 5m/s². Different application will have different result.

* High-speed 3000mm/s customization available.

* 1500 mm/s maximum linear speed for all cleanroom-rated models.

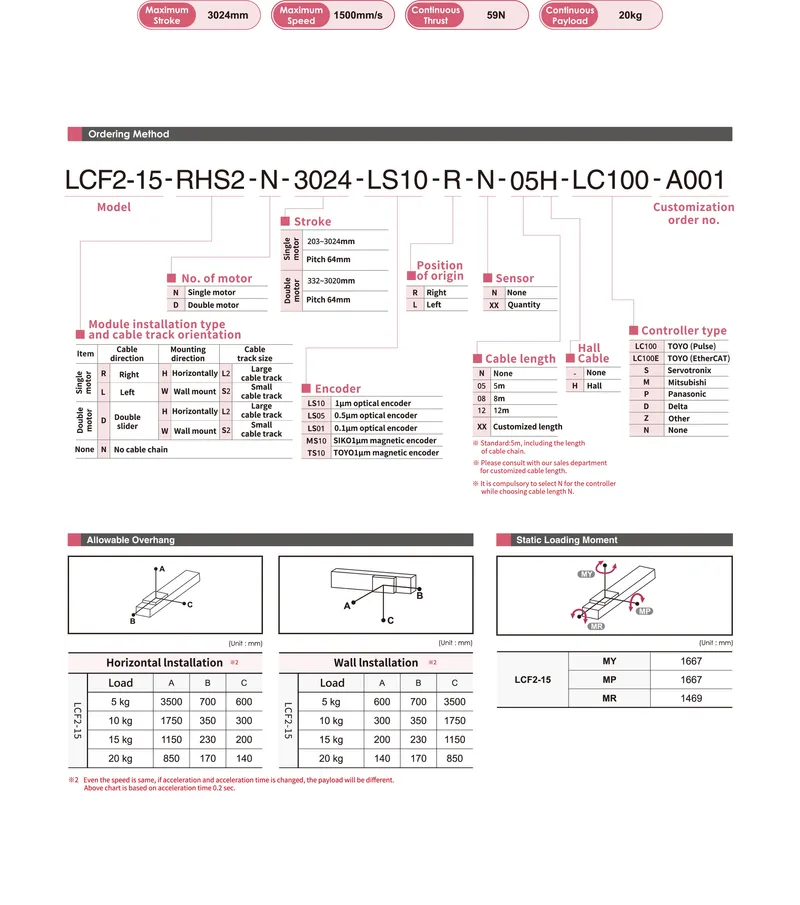

Data sheet
2D Download

LCF2-15Datasheet
